Revisiting a past project, part 0.

Recently I’ve been thinking about how much easier it is to achieve quite complex things these days compared to back in The Olden Days. In fact, it almost feels like we suffer from a surfeit of mature, high quality pieces that we can use to build almost anything.¹

There’s one project I worked on in the past — many years ago now — that I still think about from time to time; how would I accomplish those same tasks now, with everything that’s easily available to a professional today? Which parts are just plain easier, and which parts would I want to push even further today?

The project was for a pedagogical web site, and the part I worked on was a system in which photos of students’ faces were inserted into pre-filmed video segments, which were then made available for the students to watch or download as needed. (Other developers worked on the front-end portion of the system, of course.) Even viewed in isolation, it’s an interesting problem with several interesting technical problems: it requires the implementation of a tool to do the compositing of the photo with the video file, managing asynchronous long-running tasks for users, and secure storage and retrieval of the media in any of a number of required formats. And, as always, the need to get maximum value for a minimum of cost.

I won’t generally discuss much about the actual implementation of the original project as it was very much a product of its time — if I remember correctly, we were lucky to have access to EC2 and S3, and that was pretty much all that was available for AWS services at the time. But I do want to mention a significant part of the project that I was lucky enough to simply have given to me back then: the pre-filmed videos all had tracking data (tracking the location of the actor’s head in each frame) already acquired. At the time the project asked their video editor to do this as an additional service, but since we are starting from scratch we’ll have to come up with something ourselves. This is our first instance of something that has become… well, if not easier, then at least somewhat more accessible: we don’t have to use an expensive proprietary program to do this anymore; now we can accomplish the same thing via Blender.

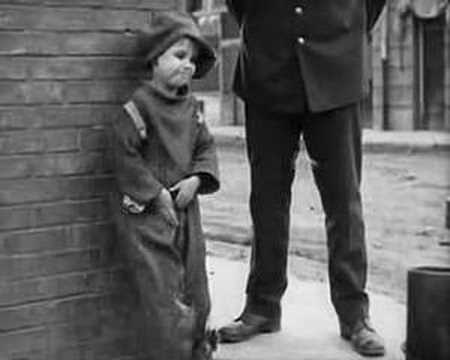

To be fair, you still have to do a little work to convince Blender to do what you want; there isn’t (to my knowledge, as of this writing) any menu item to directly export this kind of data, and you do need to understand how Blender works well enough to get it to generate the data in the first place. But once I understood the process, with some trial and error it was comparatively easy to generate some tracking data for a given video, such as this excerpt from the public domain Charlie Chaplin classic film The Kid (warning, the audio is rather loud in this clip):

The key insight to using Blender for this purpose is to realize that it already has a feature that is very close to (but not exactly) the one that we want, and then that we can convince it to do what we want anyway. In this case, the feature is something called “motion tracking” (also known as “camera solving”), and its main use is as a way to provide data for how a scene moves in the frame due to the motion of the camera itself. This data is used to make sure that CG objects you composite into the scene move in line with the real objects in rest of the scene. (Here’s a quick tutorial on using Blender for this purpose.)

By considering the situation in reverse (i.e., that it is not the camera that moves, but the object), it should be obvious that this is the exact same thing as object tracking: associate your tracker with some object in the footage and then track where it goes in the frame. In the end we are going to composite a photo over Chaplin’s head, so we used a large tracker box to cover the whole thing, which also allows the box to grow and shrink as Chaplin moves toward and away from the camera in the frame, but it does require additional manual adjustments to keep the tracking going due to things like head turns and nodding.

The only remaining problem is how to get the data out of Blender. For this, we can make use of Blender’s extreme extensibility, and write a small script that iterates over our tracker paths and outputs the coordinates of the tracker and the corners of the tracking box at each frame, based on some fragments of code floating around in Blender land.

"""Python 3 Blender script to output tracker data for each frame of a clip."""
from functools import reduce

import bpy  # Blender interface module


def process_clip(clip):
    for ob in clip.tracking.objects:
        for track in ob.tracks:
            process_track(track, ob, clip)


def process_track(track, ob, clip):
    fn = '{0}_{1}_tr_{2}.csv'.format(
        clip.name.rsplit('.')[0], ob.name, track.name
    )
    with open(fn, 'w') as fh:
        save_tracking(fh, track, clip)


def save_tracking(fh, track, clip):
    width, height = clip.size
    for framenum in range(clip.frame_duration):
        marker = track.markers.find_frame(framenum)
        if marker:
            coords = marker.co.xy
            corners = marker.pattern_corners
            corners = reduce(lambda x,y: x+y, map(list, corners))
            corners = [
                corners[0]*width, corners[1]*height,
                corners[2]*width, corners[3]*height,
                corners[4]*width, corners[5]*height,
                corners[6]*width, corners[7]*height
            ]
            print(','.join(map(str, [
                framenum,
                coords[0]*width,
                coords[1]*height,
                *corners
            ])), file=fh)


for clip in bpy.data.movieclips:
    process_clip(clip)

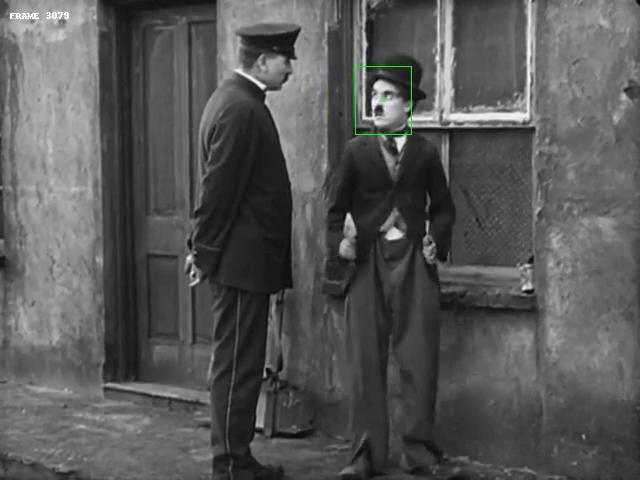

This will write to a file, one for each track in the Blender project. Later we will use these coordinates to paste the user-supplied image, but we can also use them to generate some debug output, such as simply marking the tracking location with a box, like so:

With these two things (the source video and the tracking data), we are ready to begin. Next time I’ll discuss a general design for the complete system, and then we’ll start implementing.
